Description
Flip Badge Camera Installation Guide
Flip Camera with Dynamic Parking line

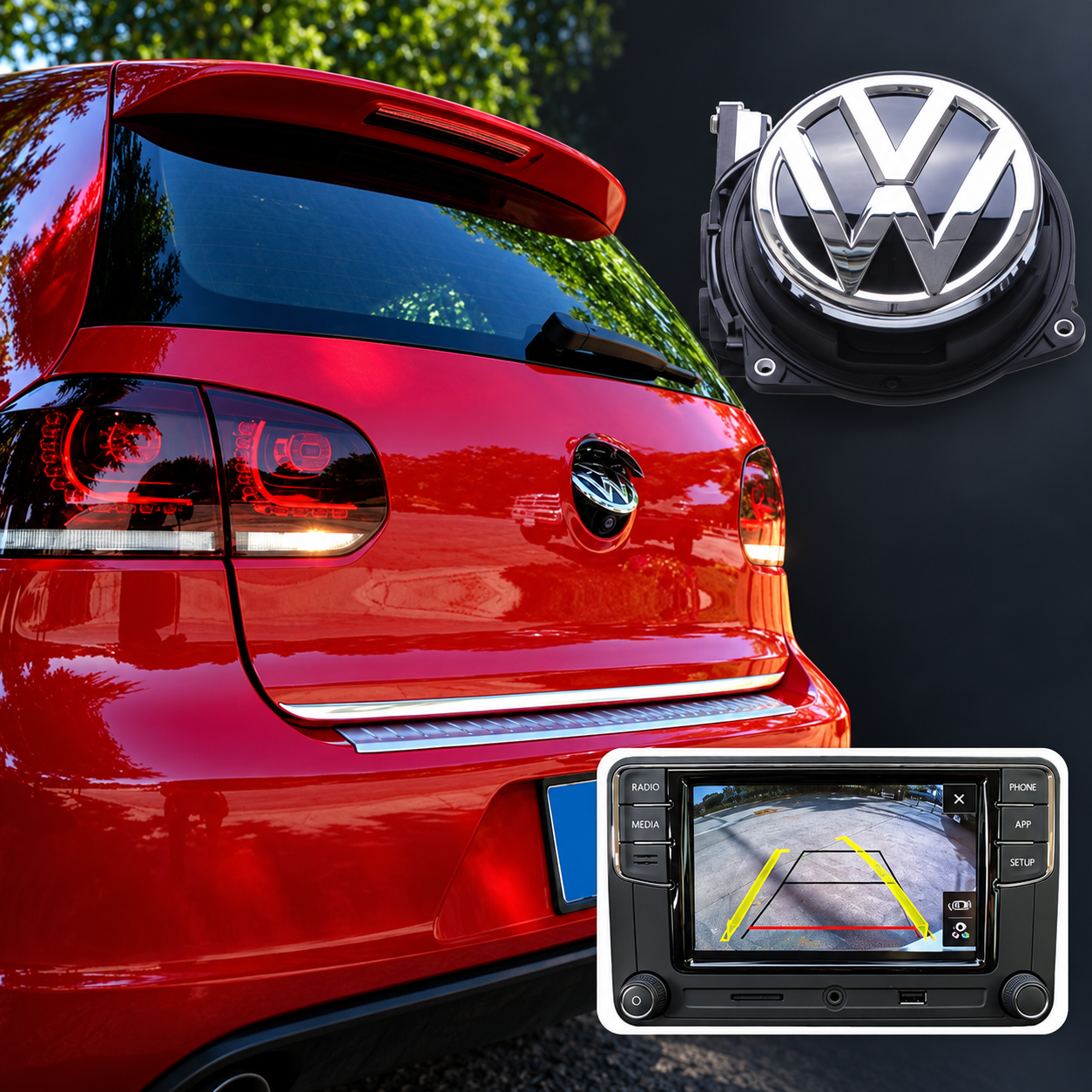

Smoked black badge camera Dynamic parking line Golf6/7 GTI Polo EOS Beetle PassatCC RCD330 plus
There are three types of flip cameras. Package A is shipped by default.
The Camera Built-in Dynamic parking Chip. Support Trajectory Parking Line
-Installation requirements: ESP. vehicle brand must have ESP function,
Fits Unit: RCD330 Plus / RCD340G / MIB200 / MIB682 / 5GD 035 280B / Other Android unit (all unit with CVBS AV Camera)
Not fits: RCD510 / RNS315 / RNS510.
Please note that:

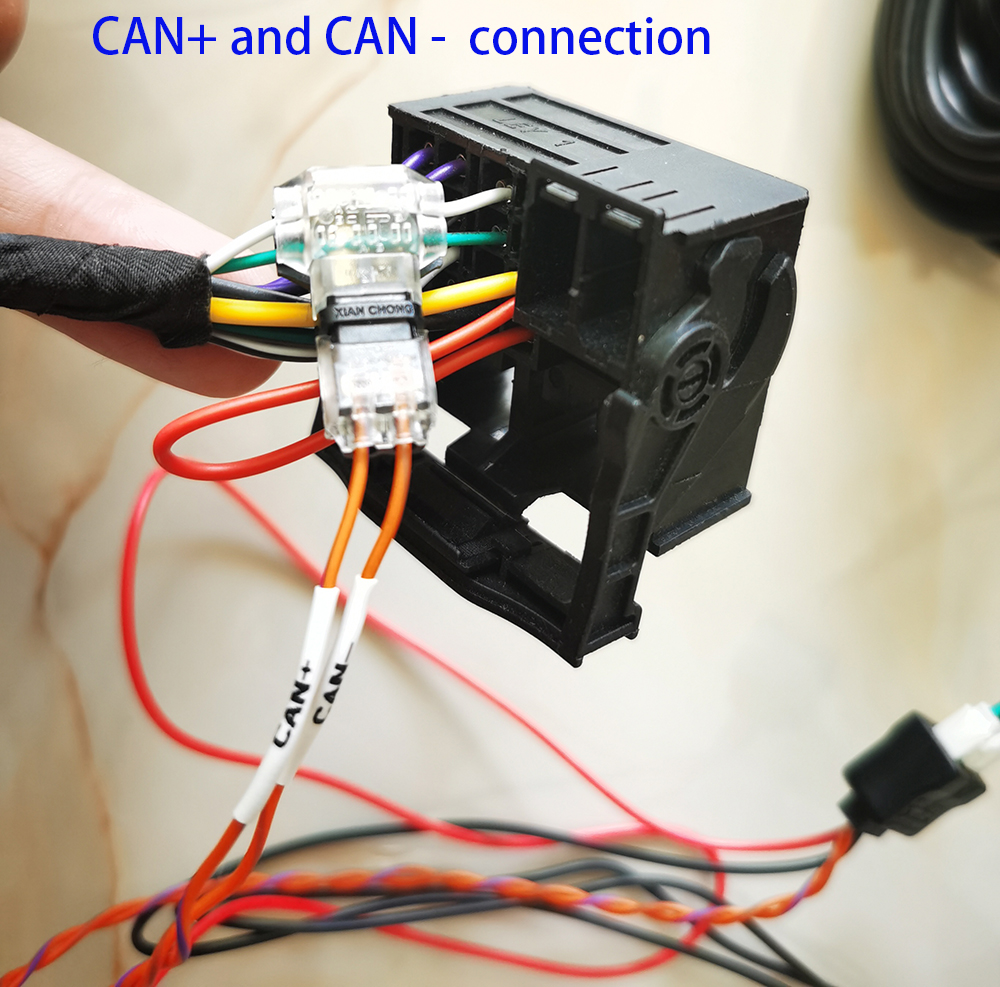

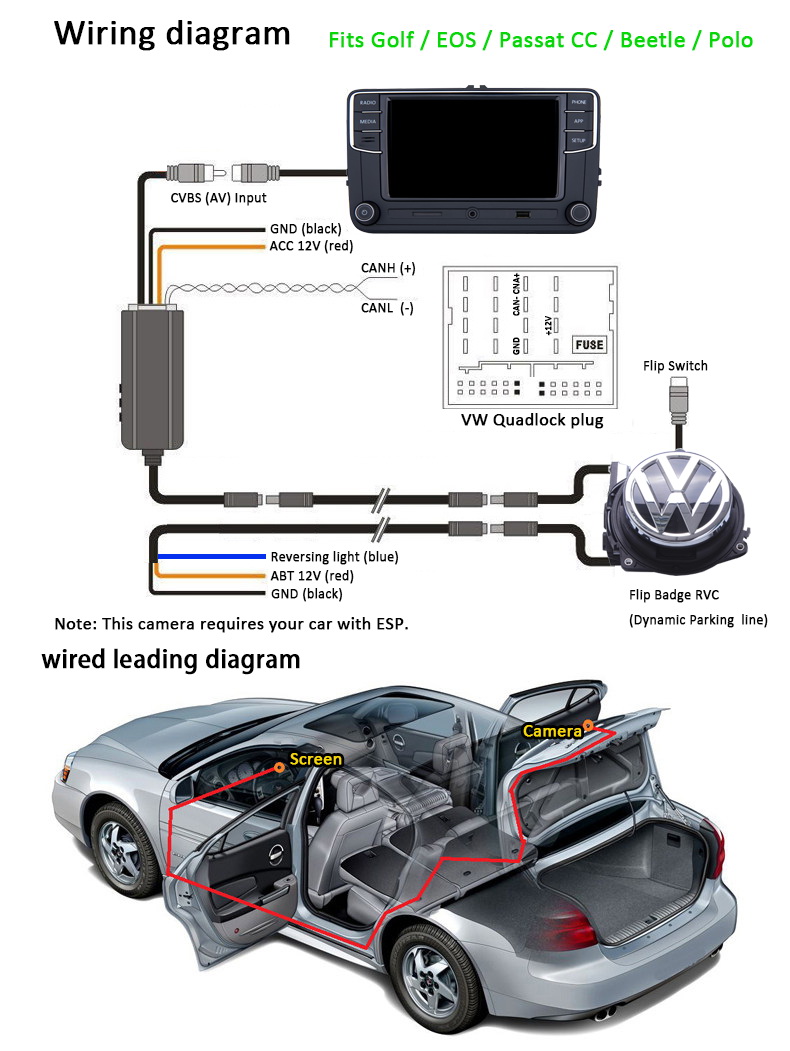

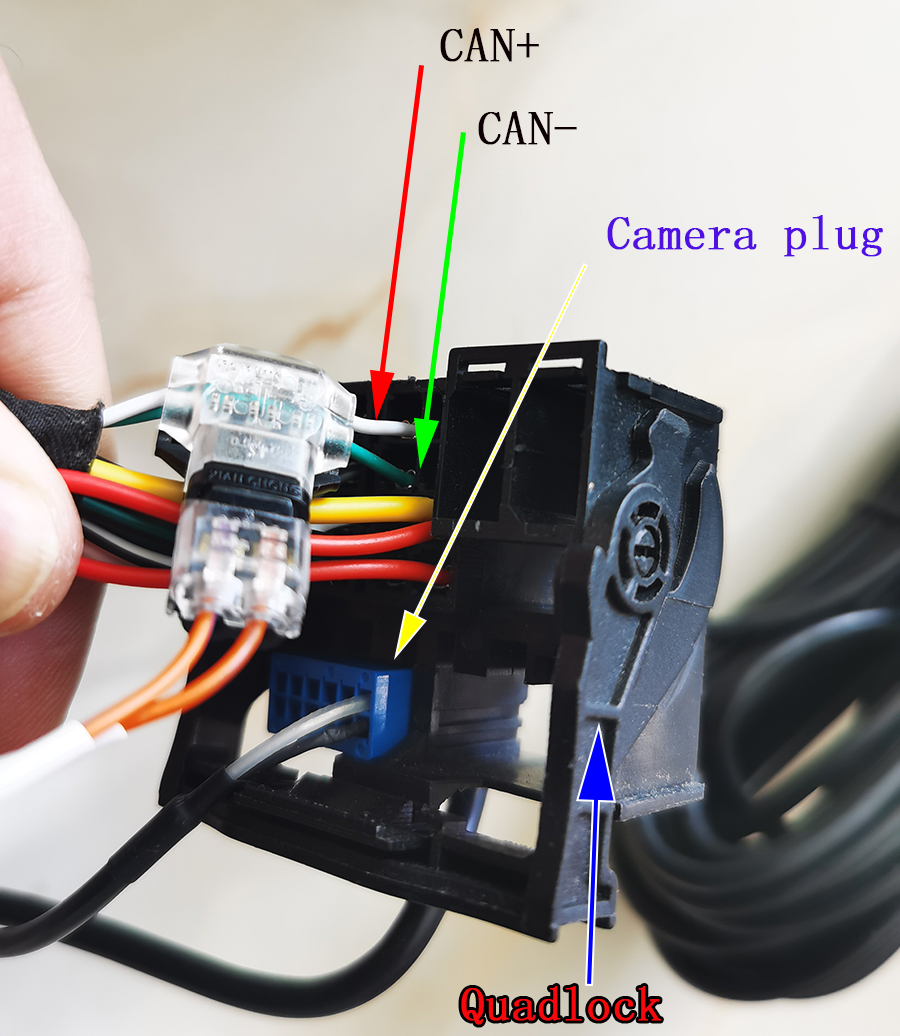

-The installation is very simple, even simpler than a camera without a dynamic parking line. Just lay the cable from the instrument panel to the trunk, install the camera, and connect the CAN+ and CAN- cable to ISO quadlock or gateway, so that the camera can receive data from the CANBUS and display the dynamic parking line.
-No delay is required because it has a built-in delay.
-It is also suitable for MQB vehicles manufactured after 2015,(Golf7 / 7.5 Pls conact Seller).
-If you have any questions, please contact me.
Features:
1) CCD Digital trajectory image sensor designed for VW MIB Stereo Original Screen , it don’t need a CANBUS decode . support original steering wheel Dynamic trjectory line control . 2) Real 150 degree wide viewing angle.6 Glass Lens . 3) Installed in the Rear Trunk handle , 6m Video cable connection Stereo monitor, Reversing, the monitoring system automatically start working, you can clearly see the car Rear the situation . 3) -30 to 60 temperature range of application, The factory after the high pressure water immersion test and 12 hours on the electrical aging test, multilayer waterproof design, truly high pressure washing and immersion .
ehsan –
I’m so happy with the quiality of camera, wiring and packaging.
Cablinge was done same as the video with good quality.
Installation was very straight forward on my Golf MK6. I only needed to enable the camera from VCDS and install and plug the the cables.
The only downside is the camera is a bit heavy and my rear door gets slower when opening and a bit heavier when closing.
Ddren –
The function of this camera is only the function of the switch of the trunk. The problem you mentioned has nothing to do with this camera. Check whether the inner liner is restored to its original position.
Roy Overthrow –
Ordered this for my sons Polo 6r match also upgraded to the rcd330 with apple car play and rear usb. You kindly set the rcd330 for camera capability and supplied the new bracket needed for the polo. All fitted together nicely with no problems boot action the same as the old switch. Delivery took 10 days which we were really surprised with. Can recommend highly no problems at all thank you.
Sascha –
