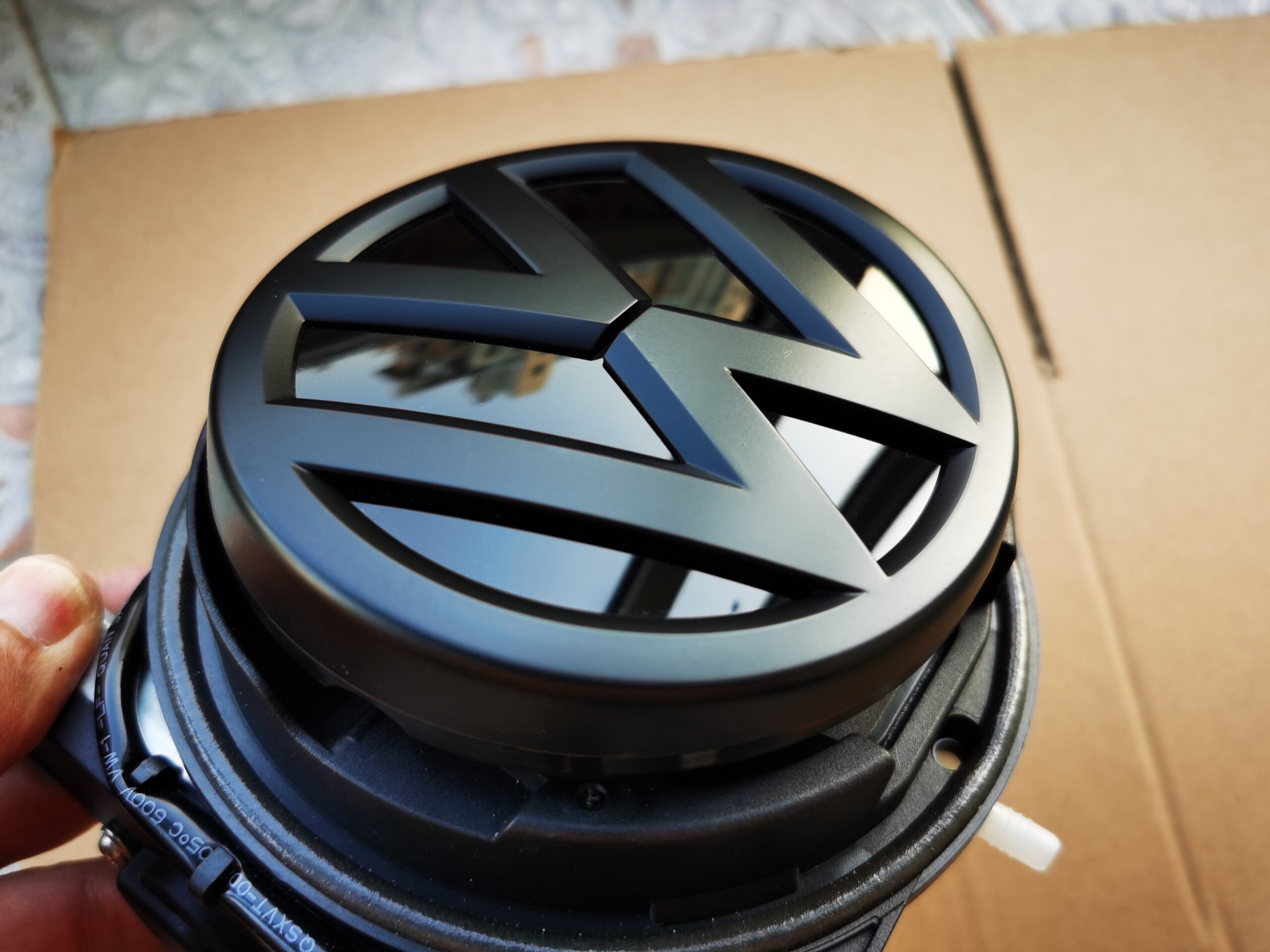

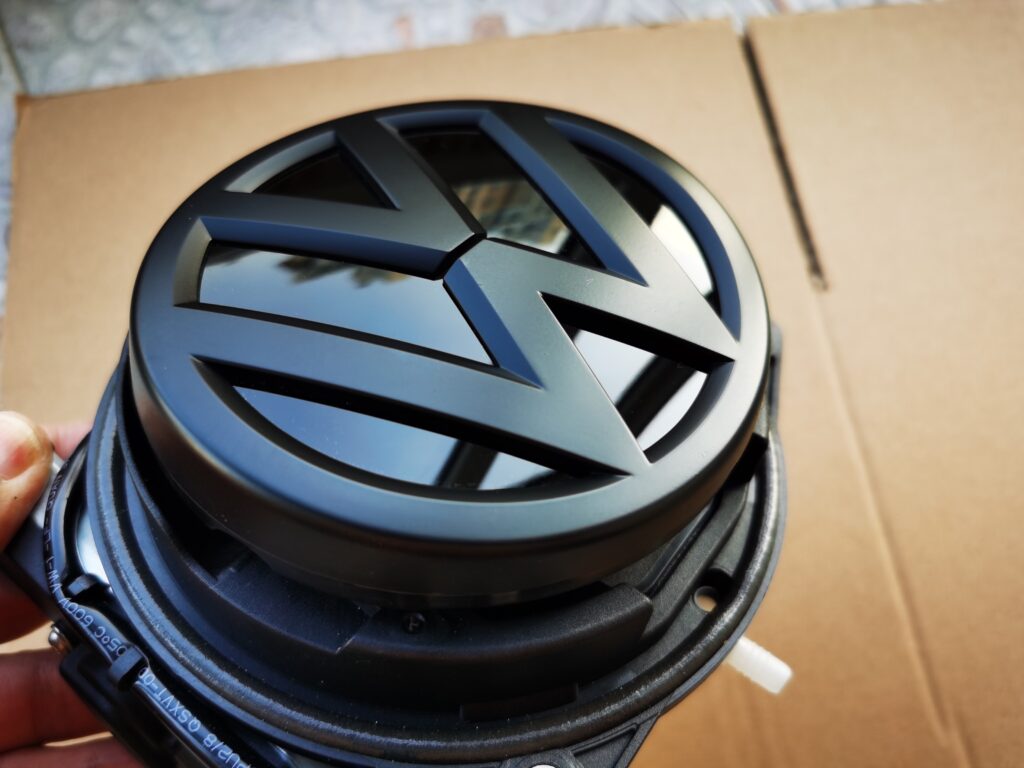

Name: Smoked black badge camera Dynamic parking line Golf6/7 GTI Polo EOS Beetle PassatCC RCD330 plus
SKU: 13105
Price: 149.00 USD
Availability: InStock

Description

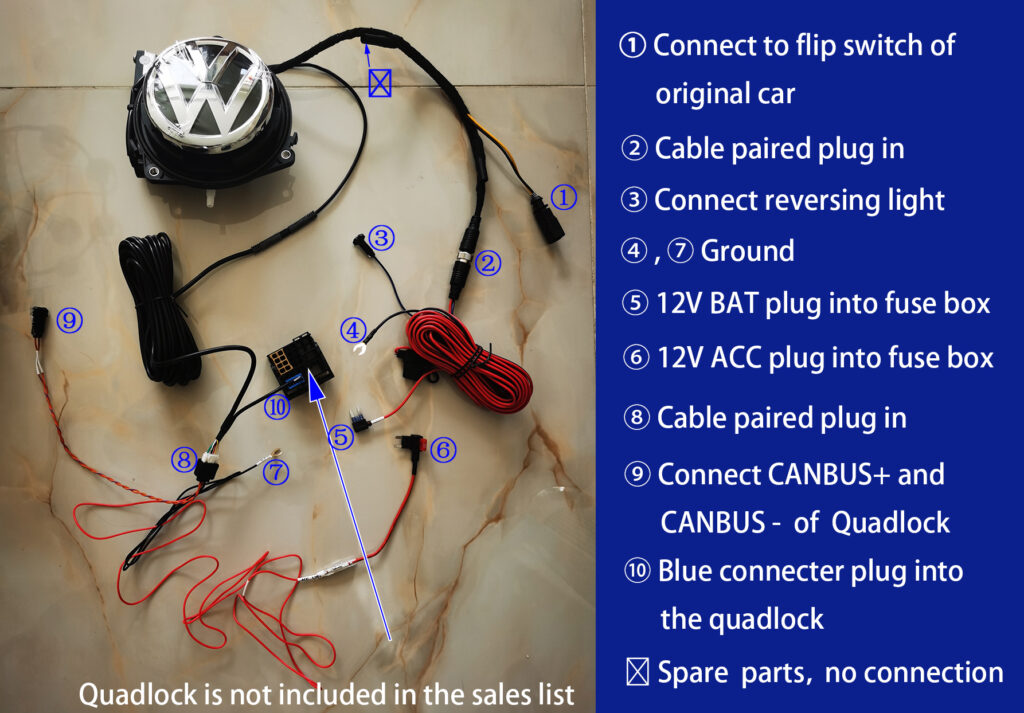

Flip Badge Camera Installation Guide

Flip Camera with Dynamic Parking line

There are three types of flip cameras. Package A is shipped by default.

Package A: Fits MK6, Golf 6, GTI, EOS, Passat CC, Scirocco, Polo, PQ and MQB Volkswagen.(It is not fit MK5, the installation of MK5 requires the wiper after cutting)

Package B: Fits all Beetle, it does not have the problem of the parking line pointing to the sky.

Package C: FIts Golf 7, MK7, Golf 7-R GTI, GTE, E-Golf 7,Golf 7 R-Line. MQB Volkswagen.

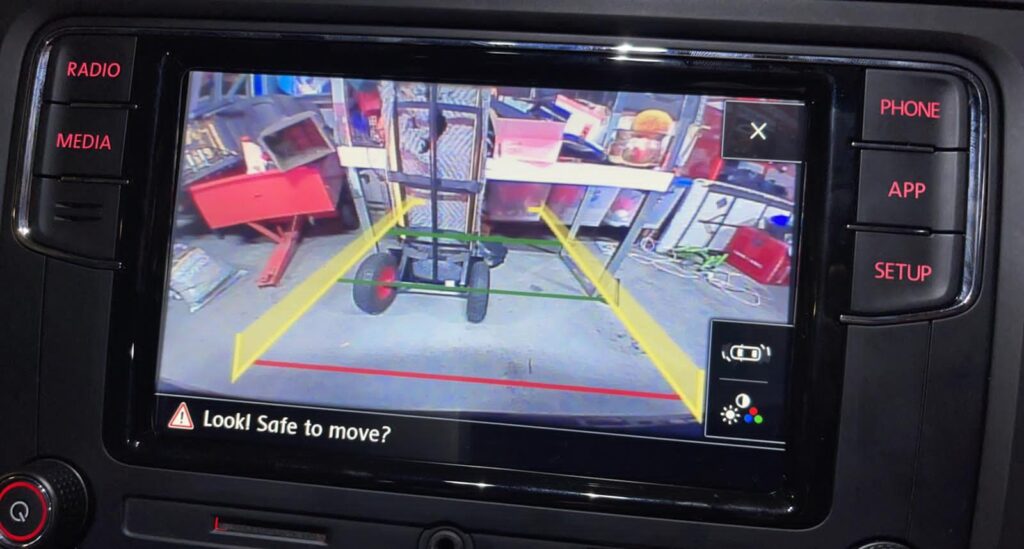

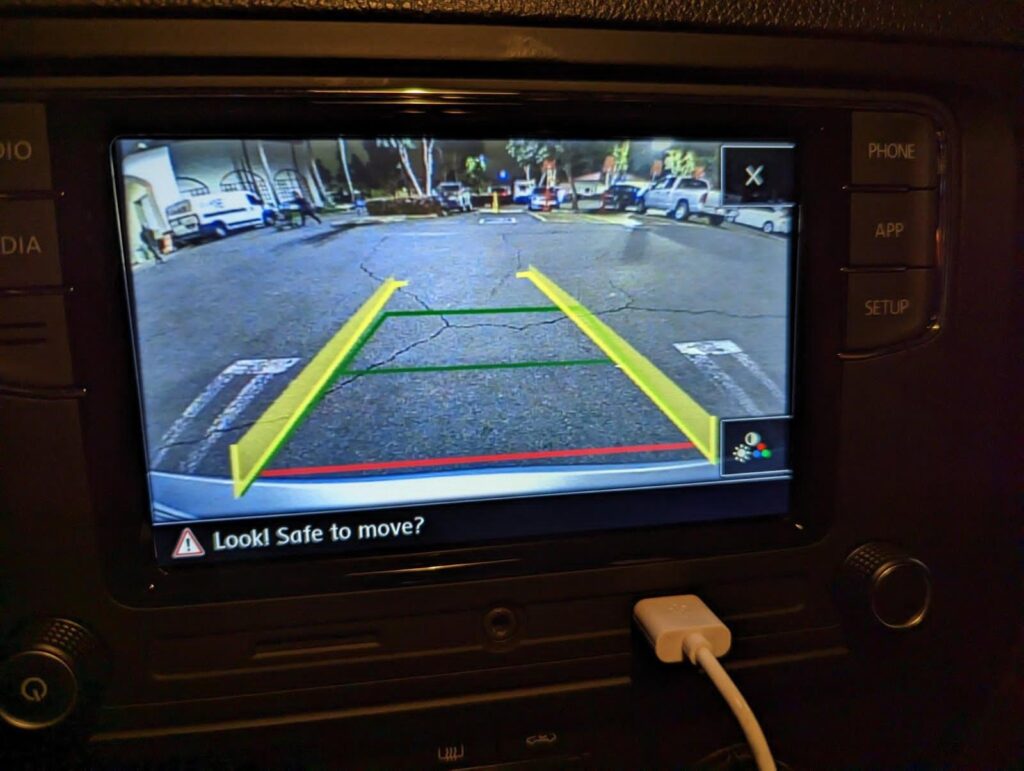

The Camera Built-in Dynamic parking Chip. Support Trajectory Parking Line

-Installation requirements: ESP. vehicle brand must have ESP function,

Fits Unit: RCD330 Plus / RCD340G / MIB200 / MIB682 / 5GD 035 280B / Other Android unit (all unit with CVBS AV Camera)

Not fits: RCD510 / RNS315 / RNS510.

Please note that:

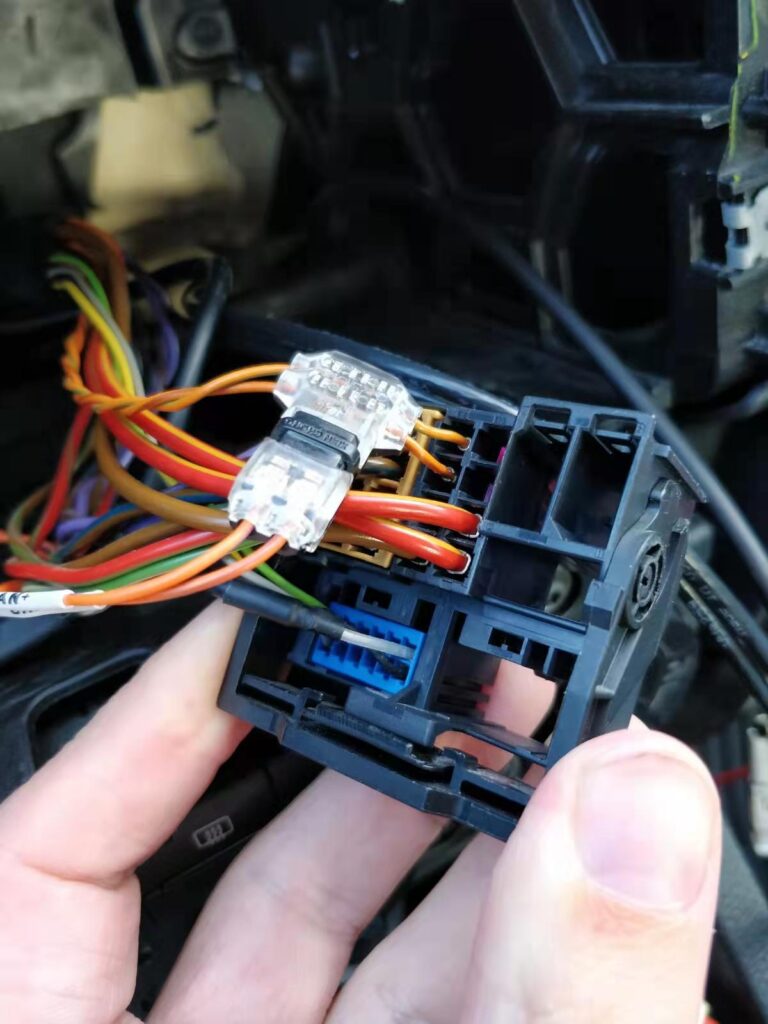

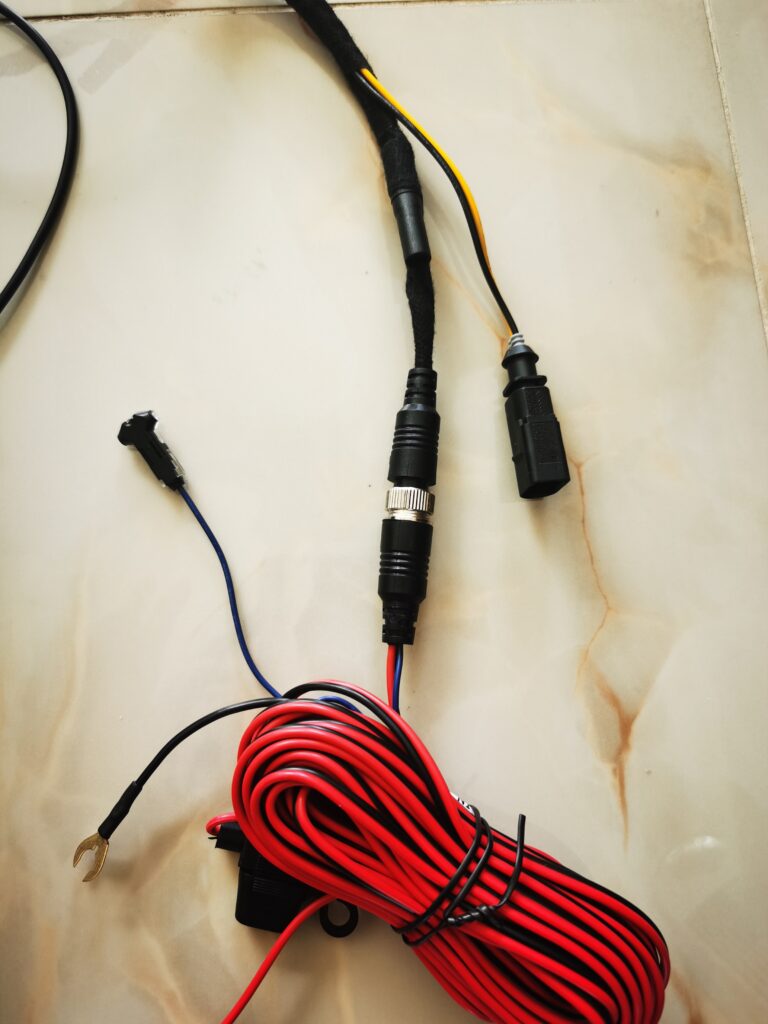

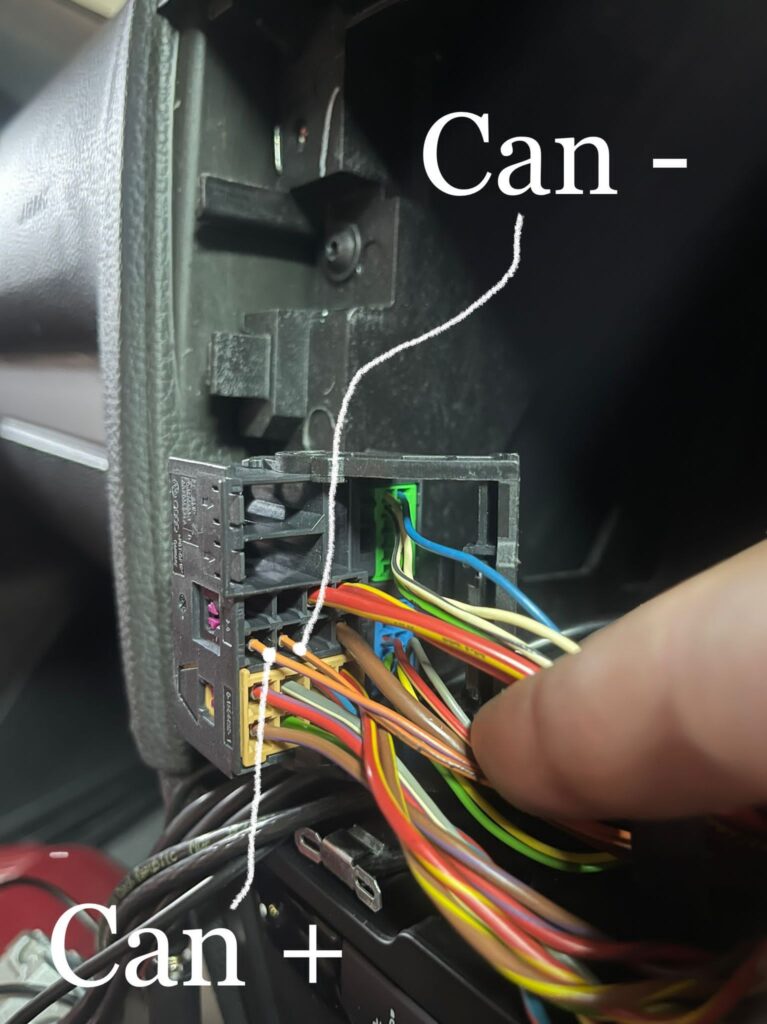

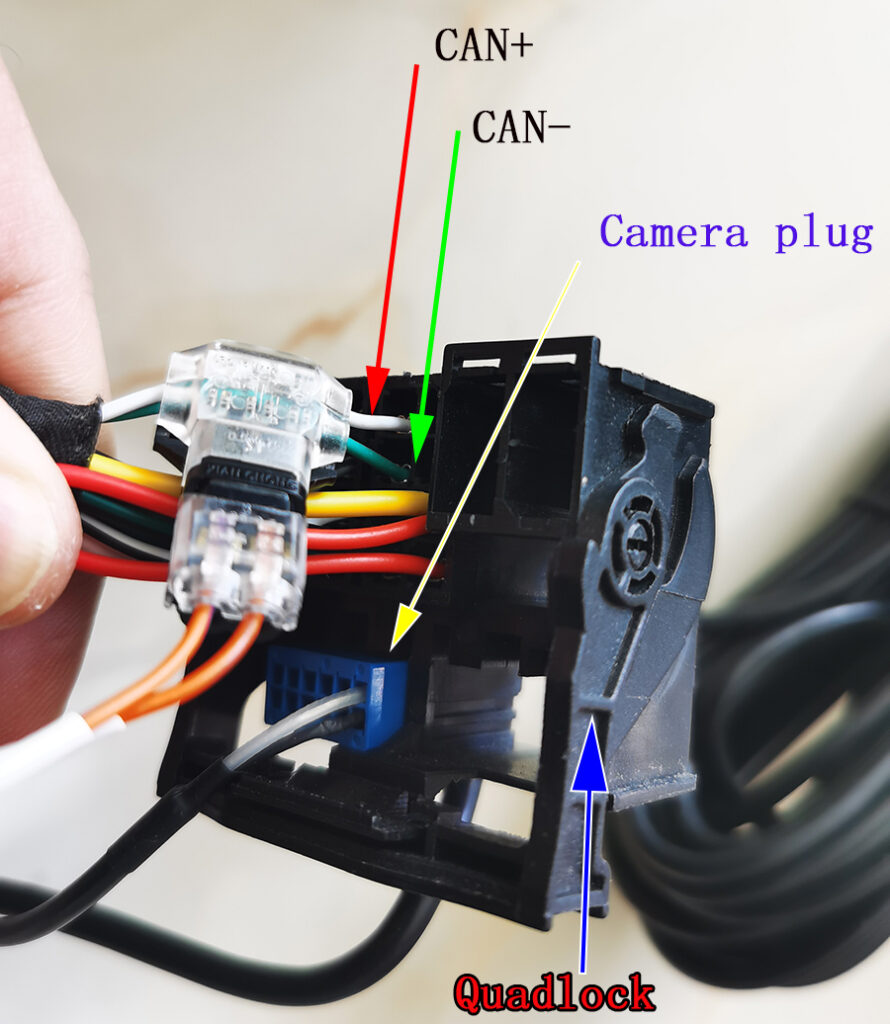

-The installation is very simple, even simpler than a camera without a dynamic parking line. Just lay the cable from the instrument panel to the trunk, install the camera, and connect the CAN+ and CAN- cable to ISO quadlock or gateway, so that the camera can receive data from the CANBUS and display the dynamic parking line.

-No delay is required because it has a built-in delay.

-It is also suitable for MQB vehicles manufactured after 2015,(Golf7 / 7.5 Pls conact Seller).

-If you have any questions, please contact me.

Features:

1) CCD Digital trajectory image sensor designed for VW MIB Stereo Original Screen , it don’t need a CANBUS decode . support original steering wheel Dynamic trjectory line control .

2) Real 150 degree wide viewing angle.6 Glass Lens .

3) Installed in the Rear Trunk handle , 6m Video cable connection Stereo monitor, Reversing, the monitoring system automatically start working, you can clearly see the car Rear the situation .

4) -30 to 60 temperature range of application, The factory after the high pressure water immersion test and 12 hours on the electrical aging test, multilayer waterproof design, truly high pressure washing and immersion .
