Description
original part ! Condition: New, Perfect conditions.
Part number: 5GD 035 280B
Technical specifications:
Installation position: front
Special features: 6.5″ touch, FM/AM radio, AUX, SD card, USB, Bluetooth, RVC, Carplay, Android auto, Mirrorlink.
Installed in:
VW Golf Sportsvan (AM1) from 2014
VW Golf VII from 2014
Audio System Compatibility: This unit is not compatible with vehicles equipped with the Fender Audio System. If your car has the Fender sound system, please do not select this unit.
Fitment and Compatibility Notice (Important Please Read Before Purchasing)
Although both MIB units shown in the images originate from the VW Golf 7 / Sportsvan, they feature distinct physical structures and hardware layouts. Please verify your original unit’s design and part number before buying.
-

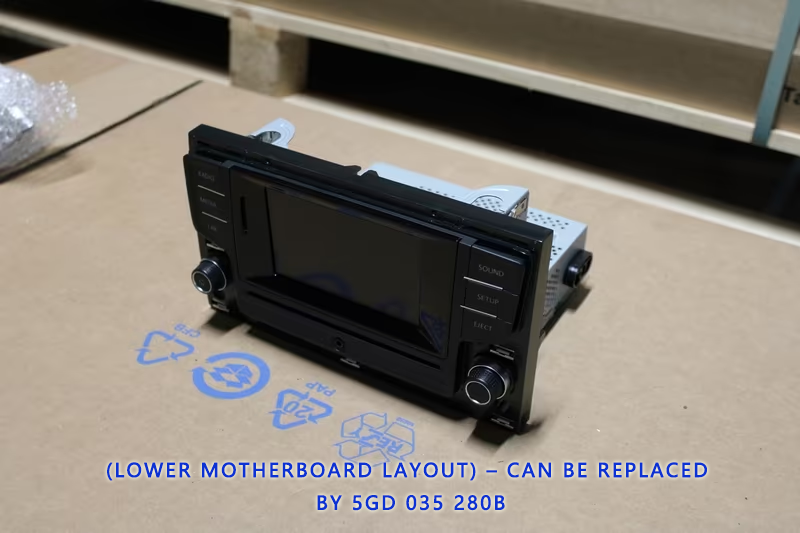

(Lower Motherboard Layout) – COMPATIBLE: As seen in image, the main motherboard and metal chassis are positioned at the lower part of the unit’s rear. Only units with this specific lower-chassis design can be successfully replaced and upgraded with the 5GD 035 280B unit.
-
Compatible Part Numbers include:
-
5G0 035 887 B (VW Golf 7 5G Composition Color Radio SD MIB2 DAB)
-
5G0 035 867 D (VW Golf 7 5G Composition Color Radio SD MIB2)
- 510 035 867 B (VW Golf Sportsvan Composition Color Radio SD MIB2 DAB)
-
510 035 867 G (VW Golf Sportsvan Composition Color Radio SD MIB2 DAB)
-
-
-

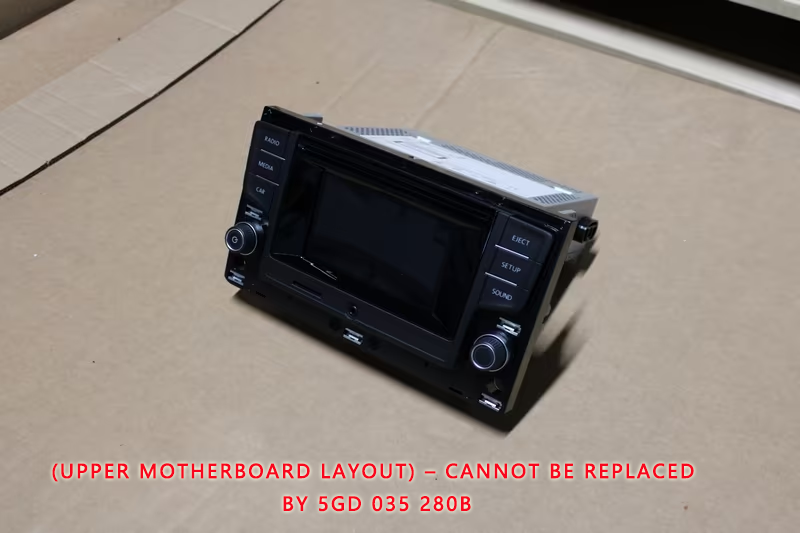

(Upper Motherboard Layout) – NOT COMPATIBLE: As seen in image, the main metal chassis is positioned at the upper part of the unit’s rear (Upper-board layout). Due to structural differences, these units CANNOT be replaced or substituted by the 5GD 035 280B unit.
-
Incompatible Part Numbers include:
-
510 035 887 A (VW Golf Sportsvan Composition Color Radio SD MIB2 DAB)
-
510 035 867 C (VW Golf Sportsvan Composition Color Radio SD MIB2)
-
510 035 867 D (VW Golf Sportsvan Composition Color Radio SD MIB2 DAB)
-
510 035 869 (VW Golf Sportsvan Composition Color Radio SD MIB2 BT)
-
510 035 888 A (VW Golf Sportsvan Composition Color Radio SD MIB2 Bluetooth)
-
-
⚠️ CRITICAL WARNING FOR “510…” PART NUMBERS: Please be extremely cautious if your original unit’s part number starts with “510”. Even though these units look identical from the front panel, the vast majority of MIB units starting with “510” CANNOT be replaced by the 280B unit due to the internal upper-board structure. Always double-check the rear layout before ordering.
🔄 Compatibility & Replacement
-
Direct Replacement: This unit is fully compatible and serves as an excellent upgrade/replacement for your factory head unit.
-
Button Layout Support: Fully compatible with vehicle dashboards featuring faceplates with 4 functional buttons on the left and 4 buttons on the right.
🛠️ Installation & Wiring Notes
If your vehicle’s factory configuration houses the main Quadlock connector inside the glove box, please follow these adjustment steps during installation:
-
Locate the Harness: Access the original Quadlock wiring harness inside the glove box.
-
Release the Slack: Unfasten or cut the factory cable zip-ties securing the harness to unlock its full length.
-
Reroute the Cable: Guide the Quadlock connector out of the glove box compartment and reroute it directly into the space behind the main center console screen.
-
Plug & Play: Once the harness is positioned behind the central screen slot, connect it directly to the 5GD 035 280B unit for a perfect fit.
MIB2 Entry
Android Auto +Carplay+ MirrorLink
Packing :
Android Auto NONAME 280B * 1
FAKRA Antenna Adapter * 1
CVBS AV Camera PLug * 1
USB kit*1
Features:
– Just Working For VW MQB Golf 7 MK7 VII Passat B8
– AM 530-1600 KHz; FM 87.5-108 MHz (NO RDS) AM channels: 531, 540, 549 kHz…. in 9 kHz steps, In North America and Japan can not tuned in cleanly AM stations. However there is few poeple listen to AM boardcast. In Australia and europe no problem; FM channels: 87.5, 87.6, 87.7MHz…. in 0.1MHz steps which works in all counties.
– No code is need. – Bluetooth, USB, SD Card, AUX ,CVBS fromat rear view camera.
-Playing song format is MP3.APE .FLAC.
-Radio integrated Bluetooth hands-free module & integrated microphone inside front panel.
Please read the following information carefully before placing your order to ensure this unit meets your requirements:
-
Genuine OEM Part Condition: These units are genuine radios removed from original Volkswagen vehicles. As a result, there may be slight installation marks on the screw holes and the metal casing may show signs of natural aging. However, the front panel and screen are scratch-free. Once installed, the unit will appear virtually brand new.
-
Rearview Camera Function: By default, the backup camera function is pre-deactivated..
-
Media Limitations: This unit does not include a CD changer and is unable to play CDs or DVDs. Additionally, it does not support video playback.
-
Radio Features: Please note that this unit does not support RDS.
-
Audio System Compatibility: This unit is not compatible with vehicles equipped with the Fender Audio System. If your car has the Fender sound system, please do not select this unit.
