Description

https://www.ebay.com/itm/184030573803

It doesn’t require a safe code, it can work directly.

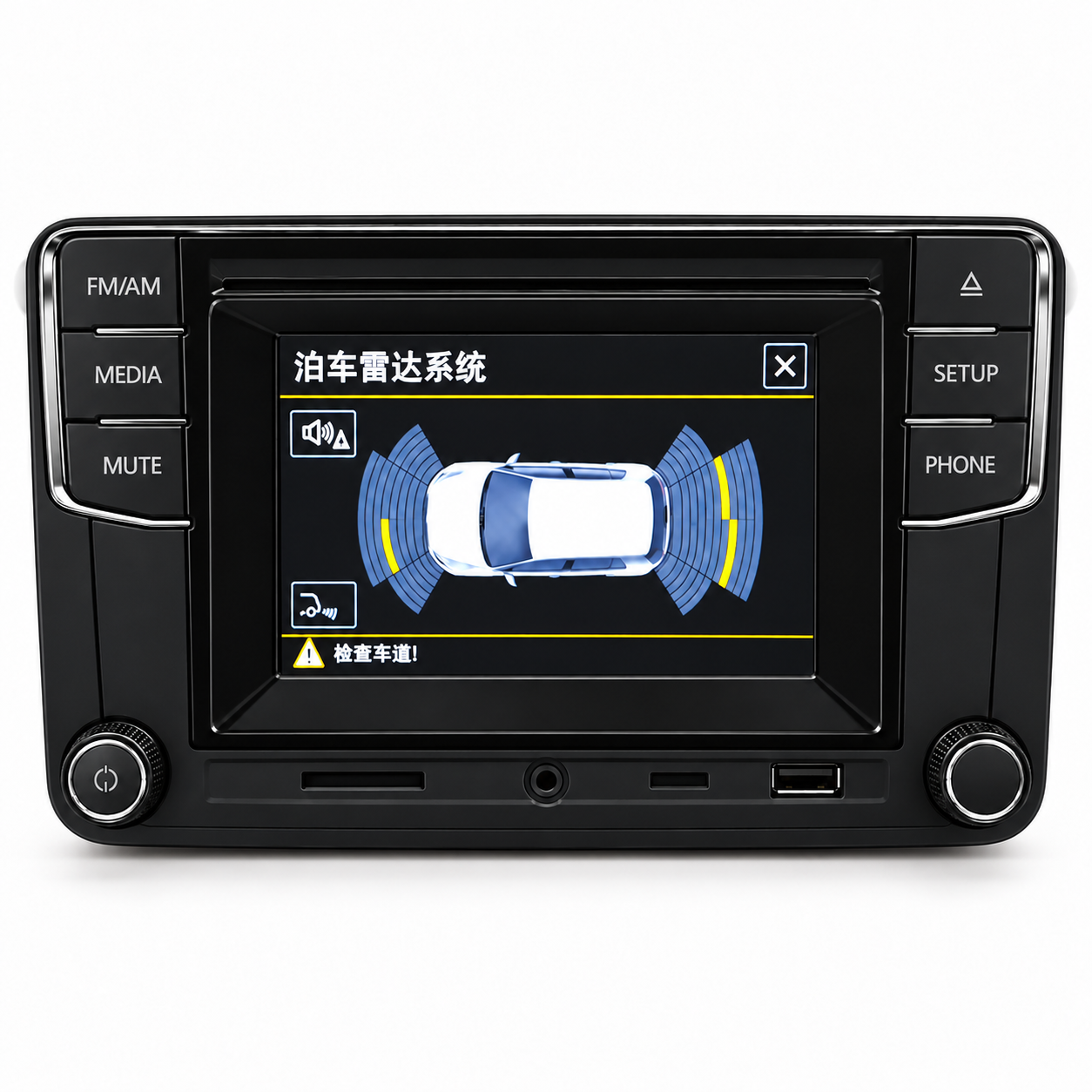

By default, the back-up camera function of the head unit is not activated, OPS(optical parking system) image will be displayed when reversing.

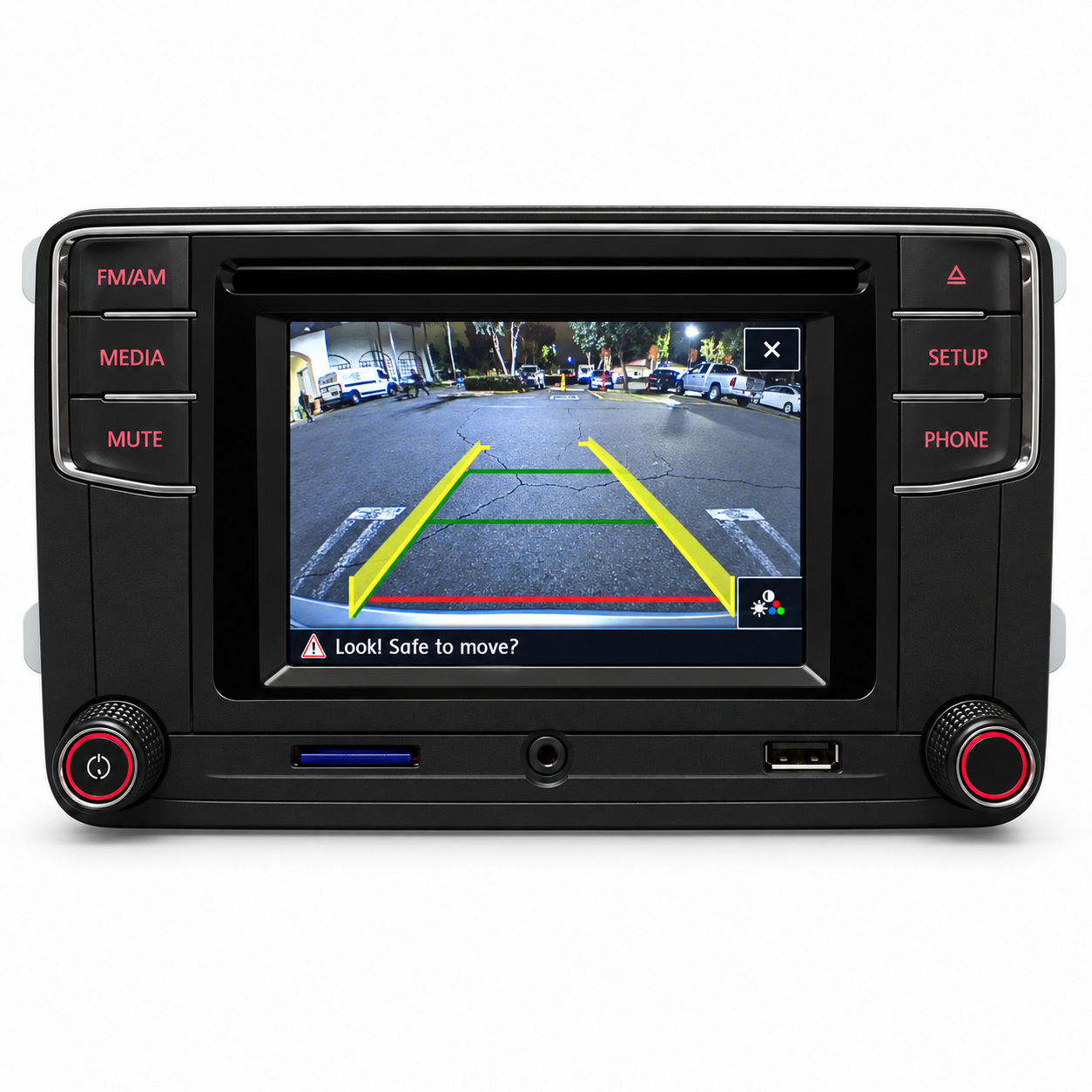

If you plan to install a back-up camera, please leave a message when ordering and let me activate the back-up camera funciton.

Package Include :

 1 PCS UNIT Support MirrorLink + Bluetooth + CD changer + USB + SD + OPS/RVC

1 PCS AV Camera Adapter(Gift)

1 PCS 2 To 1 FAKRA Antenna Adapter   (Gift)

*** Support  English + Chinese***

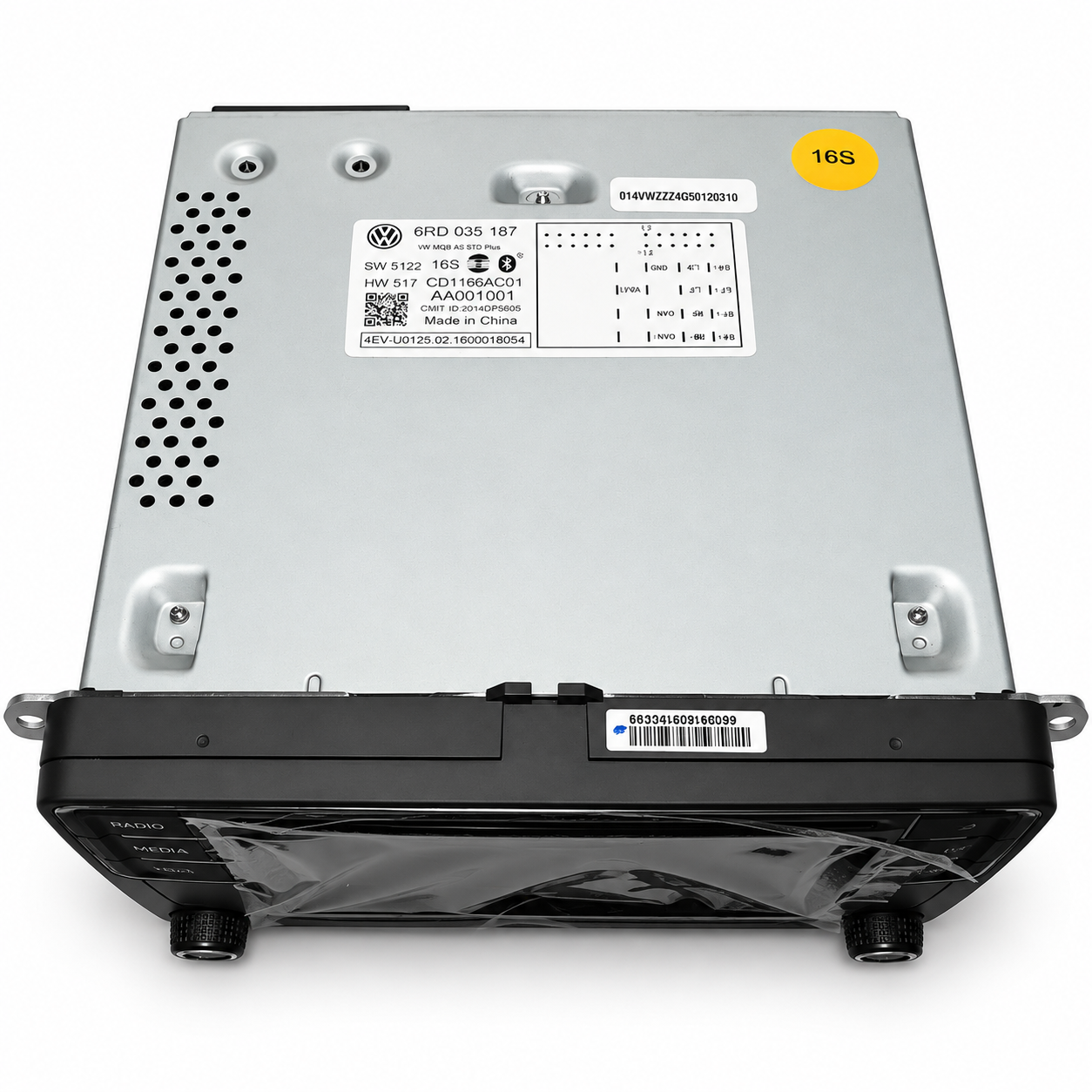

-MIB UI RCD330, Radio Size Same As RCD510 (215mm*180mm*130mm).

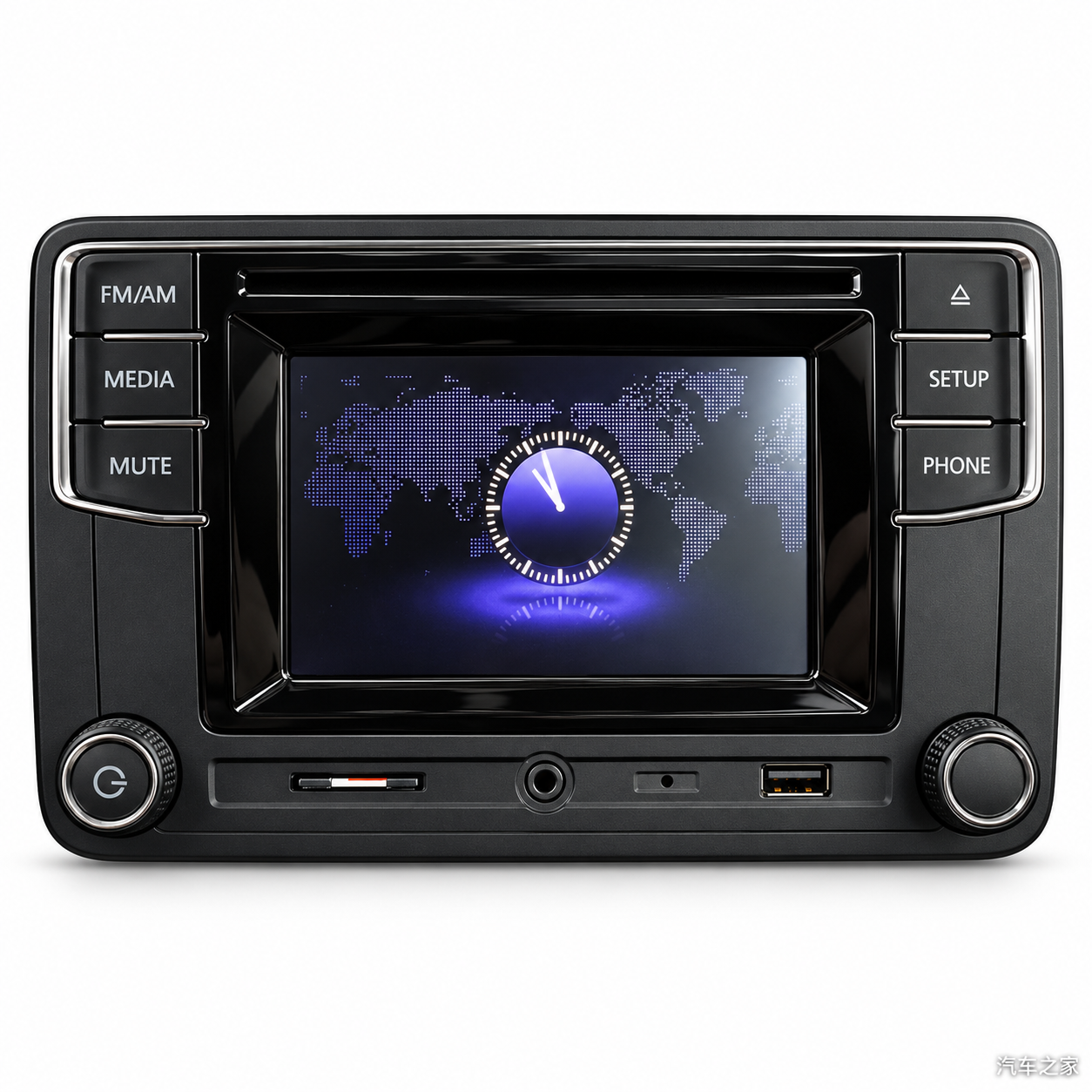

– 5 inch color touch screen
-AM 530-1600 KHz; FM 87.5-108 MHz
-AM channels: 531, 540, 549 kHz…. in 9 kHz steps, In North America and Japan can not tuned in cleanly AM stations. However there is few poeple listen to AM boardcast. In Australia and europe no problem; FM channels: 87.5, 87.6, 87.7MHz…. in 0.1MHz steps which works in all counties.
-Radio Plug Size Same As RCD510 RCD310 RNS510. Standard VW Quadlock Socket.
-It have CD Changer. It can play CD/DVD.
-Supports Bluetooth, USB, AUX, SD card, OPS, Rear View AV NTSC Camera, not vw RGB camera.
-Radio integrated BLUETOOTH hands free module + integrated microphone inside front panel.
-Supports All PQ 35/46 car makes.

– Does Not Support RDS.

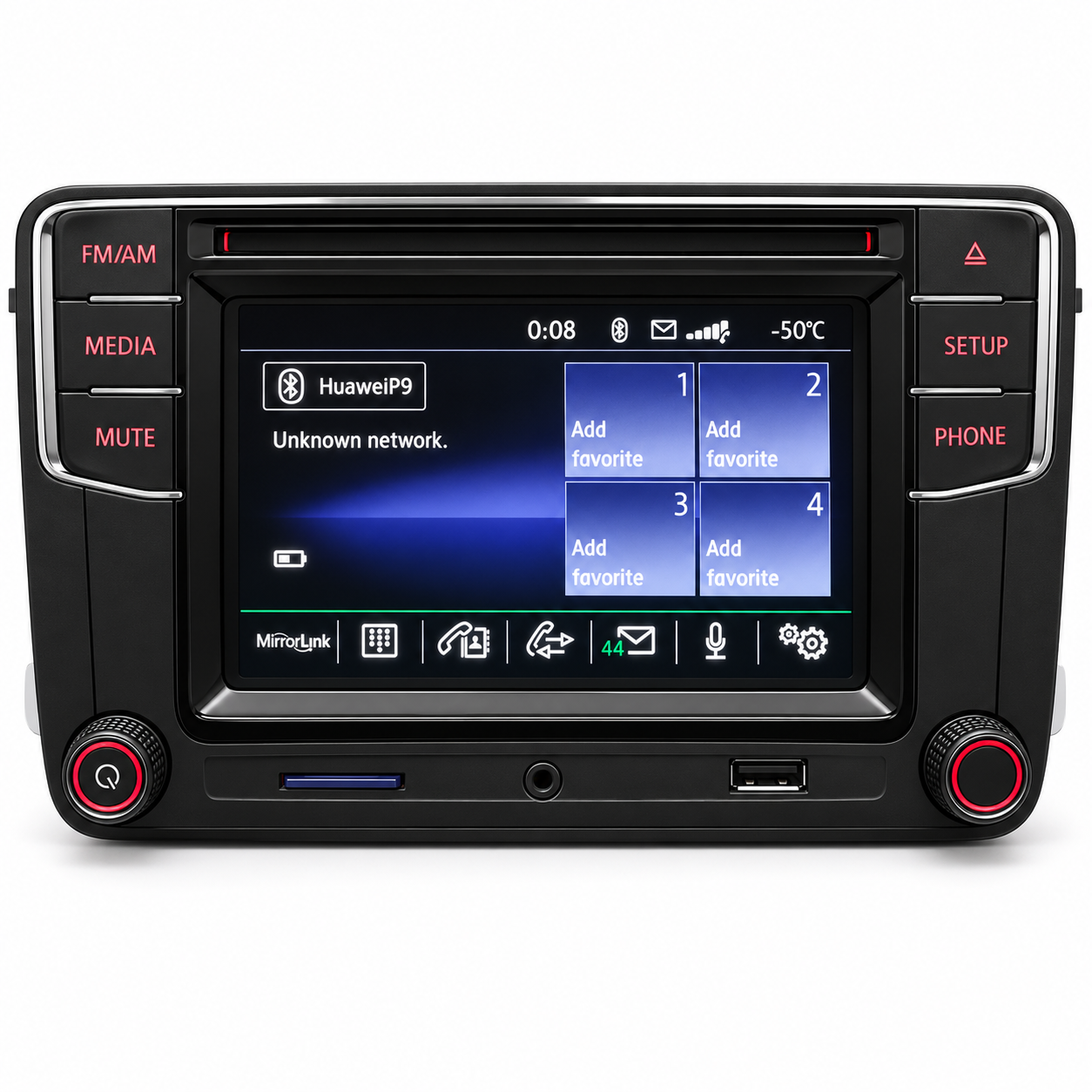

Radio Bluetooth Function Supports :
1. Show Phone Book On Touch Screen .
2. Call Phone Number on Radio
3. Add Favorite Phone Number
4. Show recent contacts
5. Play Bluetooth music -A2DP

Important notes:

– Radio supports steering wheel control,but only works with 12 button steering wheel;
– Doesn’t shown on dash maxi dot cluster;
– Doesn’t show skoda climate control.
-Car makes before 2009 maybe request a new gateway or need a Canbus adapter decoder simulatorto avoid battery drain;
-If your car has 8 button multi function steering wheel, you need to buy MFSW adapter, otherwise you can not control RCD330.
